7 Common Roof Flashing Types That Are Used On A Home

Roof flashing is a critical component of a home’s roofing system. It is used to direct water away from vulnerable areas where the roof plane meets a vertical surface like a wall or a dormer, or where two roof planes intersect. Proper installation of roof flashing can prevent water penetration, which is a leading cause of damage to roofs and the interiors of homes. There are several types of roof flashing, each designed for specific areas and purposes. In this article, we will explore seven common roof flashing types used on homes, detailing their applications and benefits.

• Step flashing
• Counter flashing
• Drip edge flashing
• Valley flashing
• Chimney flashing
• Vent pipe flashing
• Skylight flashing
• Choosing the right flashing material

👉 7 Types of Roof Flashing

Roof flashing plays a vital role in preventing water intrusion and safeguarding the structural integrity of your roof. In this section, we will explore the seven types of roof flashing, each designed to address specific areas and situations where water leakage could become an issue. Understanding these types will help you make informed decisions for optimal waterproofing and roof protection.

1. Step Flashing

Step flashing is one of the most common and crucial types of roof flashing. It is a series of small, rectangular pieces of flashing that are bent at a 90-degree angle in the center. Each piece is typically 10 inches long.

Applications:

Step flashing is used where the roof meets a vertical wall. It is installed in layers along with the roofing material, creating a stepped pattern that channels water away from the wall and onto the shingles below.

Benefits:

• Effective Water Management: The overlapping design ensures water is directed away from the roof and wall junction.
• Durability: Made from materials like galvanized steel, aluminum, or copper, step flashing can withstand harsh weather conditions.
• Versatility: Can be used with various roofing materials, including asphalt shingles, wood shakes, and more.

2. Counter Flashing

Counter flashing is installed over step flashing to provide an additional layer of protection. It is typically embedded into the wall and extends down to cover the top edge of the step flashing.

Applications:

Used in conjunction with step flashing, especially around chimneys and dormers where extra protection against water infiltration is needed.

Benefits:

• Enhanced Protection: Provides an extra barrier to prevent water from seeping behind the step flashing.
• Aesthetic Appeal: Often matches or complements the wall material, blending seamlessly with the home’s exterior.
• Longevity: Protects the underlying step flashing from direct exposure to the elements, extending the overall lifespan of the flashing system.

3. Drip Edge Flashing

Drip edge flashing is a metal strip installed along the edges of the roof. It is typically shaped like an “L” and placed under the roofing material to direct water away from the fascia and into the gutters.

Applications:

Used along the eaves and rakes of the roof to ensure water is guided into the gutters, preventing water damage to the fascia, soffits, and the underlying roof deck.

Benefits:

• Prevents Water Damage: Stops water from seeping into the roof deck and causing rot or mold.
• Supports Shingles: Helps to hold down the roofing material at the edges, providing a clean and finished look.
• Improves Gutter Performance: Ensures water flows directly into the gutters, reducing the risk of overflow or pooling at the roof edge.

4. Valley Flashing

Valley flashing is a V-shaped metal channel that is installed in roof valleys, where two roof planes intersect. It is designed to channel water off the roof and into the gutters.

Applications:

Used in open or closed valleys to manage the large volumes of water that converge in these areas, ensuring efficient drainage.

Benefits:

• High Water Volume Management: Capable of handling significant amounts of water, preventing leaks and damage in roof valleys.
• Durability: Often made from heavy-duty materials like galvanized steel, aluminum, or copper, providing long-lasting protection.
• Ease of Maintenance: The open design allows for easy inspection and cleaning, ensuring optimal performance over time.

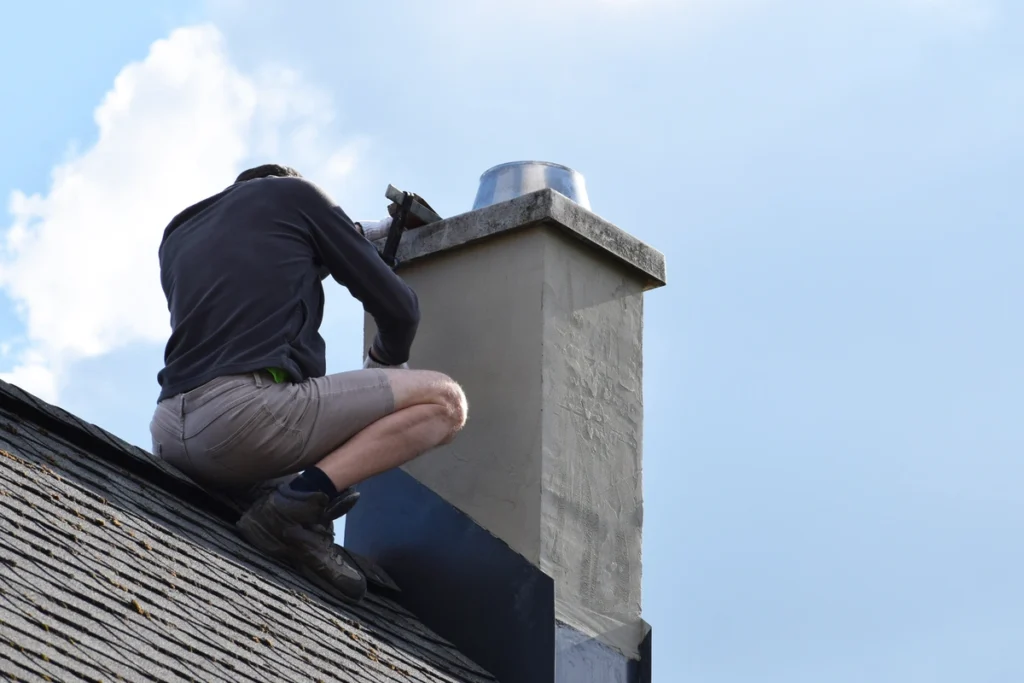

5. Chimney Flashing

Chimney flashing is a specialized type of flashing used around the base of chimneys. It typically consists of several components, including step flashing, counter flashing, and apron flashing, working together to seal the joints between the chimney and the roof.

Applications:

Used to prevent water from penetrating the roof around the chimney, which can be a common entry point for leaks.

Benefits:

• Comprehensive Protection: Multiple layers of flashing provide robust defense against water infiltration.
• Customizable: Can be tailored to fit chimneys of various shapes and sizes, ensuring a snug and effective seal.
• Aesthetic Options: Available in materials that match the chimney and roofing, maintaining the visual integrity of the home.

6. Vent Pipe Flashing

Vent pipe flashing, also known as boot flashing, is a flexible piece of flashing that fits around roof penetrations like vent pipes. It typically has a rubber or silicone boot that forms a tight seal around the pipe.

Applications:

Used around plumbing vents, exhaust pipes, and other roof penetrations to prevent water from leaking into the home.

Benefits:

• Secure Seal: The flexible boot ensures a watertight seal around the pipe, accommodating movement and thermal expansion.
• Ease of Installation: Designed for quick and straightforward installation, reducing labor costs.
• Weather Resistance: Resistant to UV rays and harsh weather conditions, ensuring long-term performance.

7. Skylight Flashing

Skylight flashing is specifically designed to fit around skylights. It typically includes head flashing, sill flashing, and step flashing to provide a comprehensive seal against water infiltration.

Applications:

Used to seal the perimeter of skylights, preventing leaks and ensuring that water is directed away from the skylight and roof.

Benefits:

• Leak Prevention: Provides a complete seal around the skylight, preventing water from entering the home.
• Custom Fit: Designed to fit specific skylight models, ensuring a perfect match and optimal protection.
• Enhanced Daylight: Proper flashing installation ensures that the skylight can provide natural light without the risk of leaks.

✅ Choosing the Right Flashing Material

When selecting roof flashing, it’s important to choose the right material for your specific application. Here are some common materials used for roof flashing and their characteristics:

Galvanized Steel

• Durability: Highly resistant to corrosion and weathering.
• Cost-Effective: Affordable option for many homeowners.
• Versatility: Suitable for a wide range of flashing applications.

Aluminum

• Lightweight: Easy to handle and install.
• Corrosion-Resistant: Naturally resistant to rust and corrosion.
• Malleable: Can be easily shaped to fit various roofing configurations.

Copper

• Longevity: Extremely durable and can last for decades.
• Aesthetic Appeal: Develops a natural patina over time, adding character to the home.
• High Cost: More expensive than other materials, but offers superior performance and longevity.

Lead

• Flexibility: Highly malleable, making it ideal for complex roof shapes.
• Heavy: Provides a secure and stable installation.
• Toxicity Concerns: Requires careful handling and consideration of environmental impact.

Rubber/Silicone

• Flexibility: Ideal for sealing around vent pipes and other roof penetrations.
• Weather Resistance: Excellent performance in extreme temperatures and UV exposure.
• Ease of Installation: Simple to install and replace as needed.
