7 Most Popular Metal Roof Flashing Types & Installation Process

Metal roof flashing is one of the most essential components of any well-sealed and long-lasting roofing system. Designed to direct water away from vulnerable areas such as roof joints, chimneys, valleys, and vents, flashing plays a key role in preventing leaks and structural damage. Choosing the right flashing type and knowing how it should be properly installed can make all the difference in your roof’s performance.

In this guide, we’ll cover:

• The most common metal roof flashing types used in residential homes
• Where and why each type is installed
• An overview of the proper flashing installation process

Whether you’re planning a new roof or upgrading an existing one, understanding flashing is vital to protecting your investment.

🤔 What Is Metal Roof Flashing and Why It Matters

Purpose of Flashing

Metal roof flashing is typically a thin piece of aluminum, steel, or copper used to redirect water away from areas where the roof surface is interrupted. This includes joints, ridges, and transitions where water might otherwise penetrate and cause leaks.

Common Flashing Materials

• Galvanized steel: Most common and cost-effective
• Aluminum: Lightweight and easy to bend
• Copper: Durable and long-lasting, but more expensive
• Zinc: A premium choice that resists corrosion

Each material has its strengths, but the most important aspect is choosing one compatible with your roofing system and local weather conditions.

Areas That Require Flashing

• Chimneys and skylights
• Valleys between roof slopes
• Eaves, ridges, and gables
• Roof-to-wall transitions

Missing or poorly installed flashing is one of the top causes of roof leaks.

❗️ 7 Most Popular Metal Roof Flashing Types

Each type of metal roof flashing is designed for a specific part of the roofing system. Here’s what you need to know about each one.

1. Step Flashing

Step flashing is used where the roof meets a vertical wall. It consists of small L-shaped metal pieces installed in overlapping layers under the shingles or metal panels and up against the wall.

• Offers excellent leak protection
• Must be layered properly to direct water away
• Commonly used around chimneys and dormers

2. Valley Flashing

This flashing runs down the valley where two roof slopes meet. It protects the joint from heavy water flow.

• Typically W-shaped to split and channel water
• Should extend several inches under the roofing material on both sides
• Comes in both exposed and concealed styles

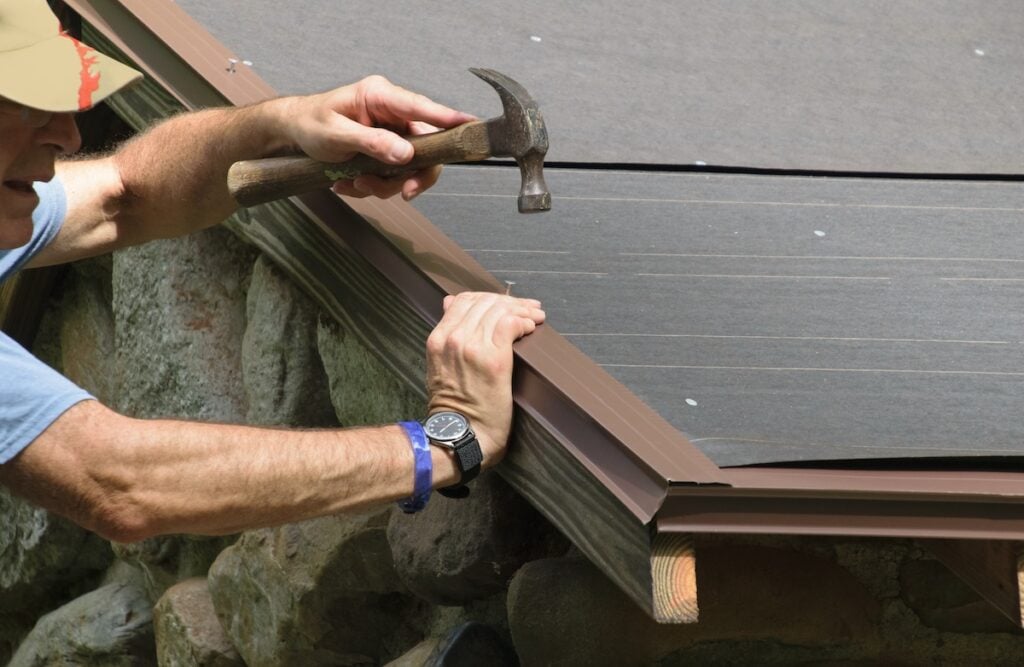

3. Drip Edge Flashing

Installed at the roof’s eaves and rakes, drip edge flashing directs water away from the fascia and prevents it from seeping under the roof deck.

• Prevents fascia board rot
• Typically installed beneath underlayment at eaves and over it at rakes
• Required by many modern building codes

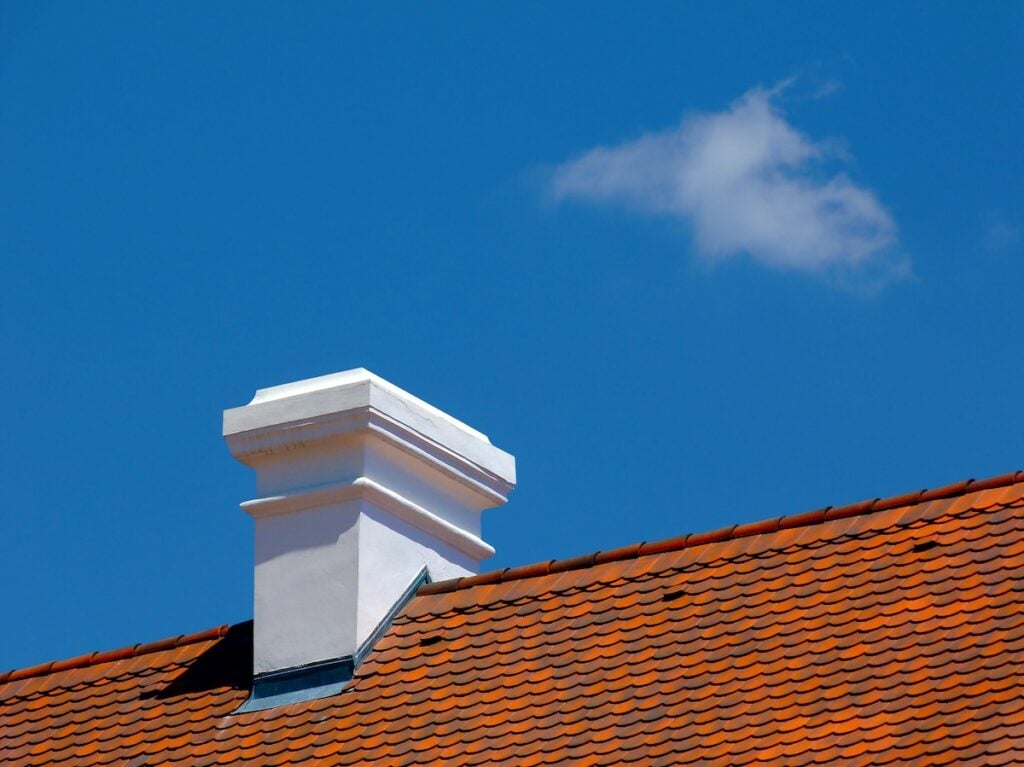

4. Chimney and Counter Flashing

These types of flashing work together to protect where a chimney meets the roof.

• Base flashing is installed at the base of the chimney
• Counter flashing overlaps and seals the top of the base flashing
• Both work together to block water from entering gaps

5. Ridge Cap Flashing

Used at the peak where two roof slopes meet, ridge cap flashing seals the top seam.

• Typically installed over a vented ridge
• Ensures moisture and debris can’t enter from above
• Often comes pre-formed for easy installation

6. Skylight Flashing

Skylight flashing prevents leaks around skylights, one of the most leak-prone areas on a roof.

• Comes in kits for specific skylight models
• Usually includes step flashing and saddle flashing
• Needs to integrate with roofing panels properly

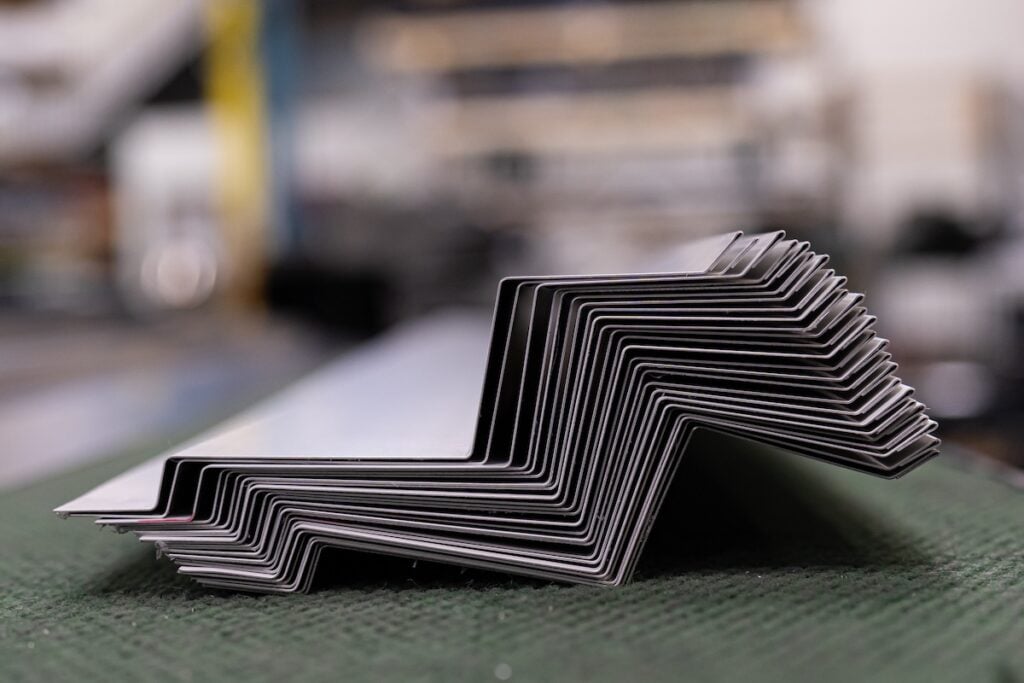

7. Z-Flashing

Used in horizontal joints, Z-flashing is often placed between rows of siding or panels.

• Shaped like a “Z” to direct water downward and out
• Commonly used in roof-to-wall transitions
• Ideal for sheds, dormers, and metal panel overlaps

👉 Installation Tools and Preparation

Proper installation starts with the right tools and planning.

Tools You’ll Need

• Metal snips
• Tape measure
• Roofing nails or screws (with neoprene washers)
• Sealant compatible with your roof type
• Chalk line and straight edge
• Drill or nail gun
• Safety gloves and eye protection

Preparing the Roof

• Remove old flashing if replacing
• Check for rot or water damage under the roofing material
• Make sure all surfaces are clean and dry before installation
• Plan the order of installation to layer flashing correctly with roofing panels

✅ The Metal Roof Flashing Installation Process

Installing flashing properly takes attention to detail. Here’s a step-by-step overview of a typical process:

Plan the Flashing Layout

• Identify all the roof areas that require flashing
• Decide which types of flashing will be used in each location
• Ensure materials are compatible with your roofing system

Cut Flashing to Size

• Use metal snips or a shear for clean cuts
• Allow for overlap where necessary
• Label pieces to stay organized

Install Starter Flashing

• Begin at eaves and valleys
• Apply drip edge and valley flashing first
• Secure with fasteners spaced every 8–10 inches

Layer Flashing with Panels

• Flashing must go beneath upper layers and above lower layers
• Use step flashing between each shingle or metal panel
• Ensure overlapping pieces are installed in a shingle-like pattern

Seal and Secure

• Use high-quality sealant along joints, edges, and seams
• Screw or nail flashing tightly without over-penetrating
• Add foam closures or butyl tape in vented areas if needed

Inspect and Test

• After installation, spray water on suspect areas to check for leaks
• Inspect for any loose edges or misaligned sections
• Reinforce with additional fasteners or sealant if needed

Proper installation not only protects against water intrusion but also extends the life of your entire roofing system.

❌ Common Flashing Mistakes to Avoid

Even minor errors can lead to costly water damage. Watch out for these issues:

• Inadequate Overlap: Flashing pieces should always overlap by at least 2–4 inches to ensure proper water flow.
• Using Incompatible Materials: Galvanic corrosion can occur when incompatible metals (like copper and aluminum) are installed together without proper barriers.
• Skipping Sealant: Not sealing joints or screw heads can allow water intrusion, especially in areas with heavy rain or snow.
• Incorrect Fastener Placement: Screws or nails should be placed strategically, not too close to the edge, and always driven in straight.

🛠️ Maintenance Tips for Flashing Longevity

Flashing isn’t a “set it and forget it” component. It requires occasional inspection and maintenance.

What to Look For

• Rust or corrosion
• Loose fasteners
• Dried or cracked sealant
• Visible gaps or misaligned sections

When to Inspect

• After major storms or wind events
• During annual roof inspections
• When performing general roof maintenance

Staying ahead of small issues helps prevent major repairs later on.
